Click to enlargeIntroduction to CDMA<a name="top">

Network, Services, Technologies, and Operation

Author: Lawrence Harte

Number of Pages: 100
Number of Diagrams: 33



Mobile Video
Magazine
Free Subscription


Printed or Electronic Version (1.1MB) Available - Electronic Version has Color Diagrams

This book explains the basic components, technologies used, and operation of IS-95 CDMA systems. You will discover why mobile telephone service providers have upgraded from 1st generation analog systems to more efficient and feature rich 2nd generation systems. You will also discover how 2nd generation systems are gradually evolving into 3rd generation broadband multimedia more....

Sample Diagrams

There are more than 21 explanatory diagrams in this book

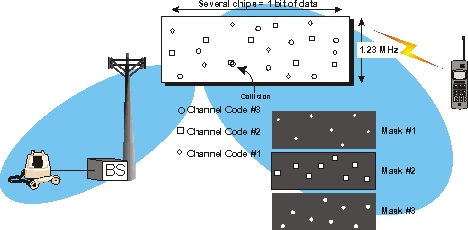

Code Division Multiplexing

This figure shows how a single direct sequence spread spectrum communication channel can have several channels. In this example, there are 3 different code patterns that are used for communication channels. When a receiver uses the reference code, a direct sequence spread spectrum system can build a mask as shown in this figure for each conversation allowing only that information which falls within the mask to be transmitted or received.

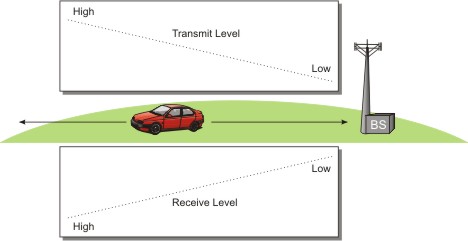

Open Loop Power Control

This diagram shows how open loop RF power control can be used in a mobile telephone system to provide approximately the same level of RF signal received by the base station from the mobile telephone regardless of the distance the mobile telephone is located from the base station. This diagram shows that the mobile telephone's coarse (open loop) RF amplifier adjustment is controlled by feedback from its receiver section. The mobile telephone continuously measures the radio signal strength received from the base station to estimate the signal strength loss between the base station and mobile telephone. This diagram shows that as the mobile telephone moves away from the base station, the received signal level decreases. When the received signal is stronger, the mobile telephone reduces its own RF signal output; conversely, when the mobile received signal level is weaker, the mobile telephone increases the amplification of its own RF signal output. The end result is that the signal received at the base station from the mobile telephone remains at about at the same power level regardless of the mobile telephone's distance.

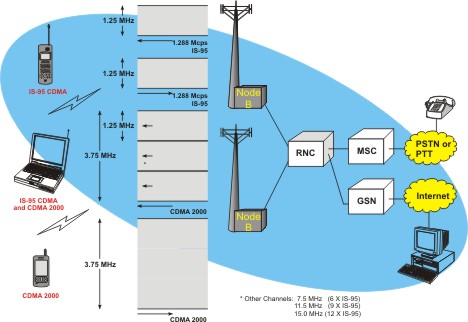

CDMA2000 System

This figure shows an overview of a CDMA2000 radio system. This diagram shows that there are several types of devices that can be used in the CDMA2000 system. These include CDMA2000 multiple bandwidth radios and IS-95 CDMA compatible mobile telephones. The CDMA2000 mobile telephone devices are usually capable of operating as IS-95 CDMA and CDMA2000 mobile radios. This diagram also shows that the CDMA2000 system can mix and combine standard 1.25 MHz wide IS-95 channels into the 3.75 MHz CDMA2000 channels.
