Click to enlargeHome Media Networks <br>2nd Edition<a name="top">

Author: Lawrence Harte
ISBN: 1932813640
Page Size: 7.5” x 9.25”
soft cover book
Copyright: 2011
Pages: 136
Diagrams: 41

Tutorial Sample - 25 Slides

Printed or Electronic Version (7.1MB) Available
- Electronic Version has Color Diagrams


This book explains why and how different types of home media network systems are used to provide audio, data and video media distribution throughout a home or business. You will learn the basic needs for audio, data and video distribution and how existing or new wireless and wired systems in a home can be used to control and deliver media.

Discover how media signals are converted to a common digital format (data) so they can be transferred over premises data networks is described along with the different types of premises data networks including LAN, Ethernet, Phoneline, Powerline and Cable Television systems. Covered are the industry standards available for premises distribution systems along with their key features and capabilities.

Sample Diagrams

Premises Distribution for IP Television

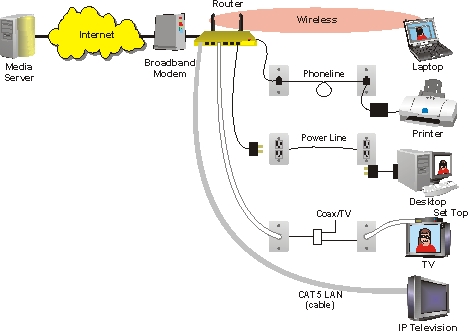

This figure shows the common types of premises distribution systems that can be used for IP television systems. This diagram shows that an IP television signal arrives at the premises at a broadband modem. The broadband modem is connected to a router that can distribute the media signals to forward data packets to different devices within the home such as IP televisions. This example shows that routers may be able to forward packets through power lines, telephone lines, coaxial lines, data cables or even via wireless signals to adapters that receive the packets and recreate them into a form the IP television can use.

Premises Distribution Bandwidth Requirements

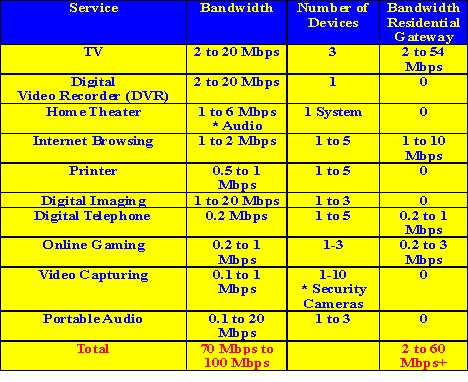

This figure shows some of the types of communication devices used in a home and their estimated data transmission requirements. This table shows that some devices may require connections through a gateway to other networks (such as to the Internet or to television systems). This table also shows that the highest consumption of bandwidth occurs from television channels, especially when simultaneous HDTV channels are access on multiple television sets. This table suggests that a total home media capacity of 70 Mbps to 100 Mbps is required to simultaneously provide for all devices within a home and that a residential gateway have broadband capability of 50+ Mbps.
